Andersen, EL winch 28 FS E1 12V

Description

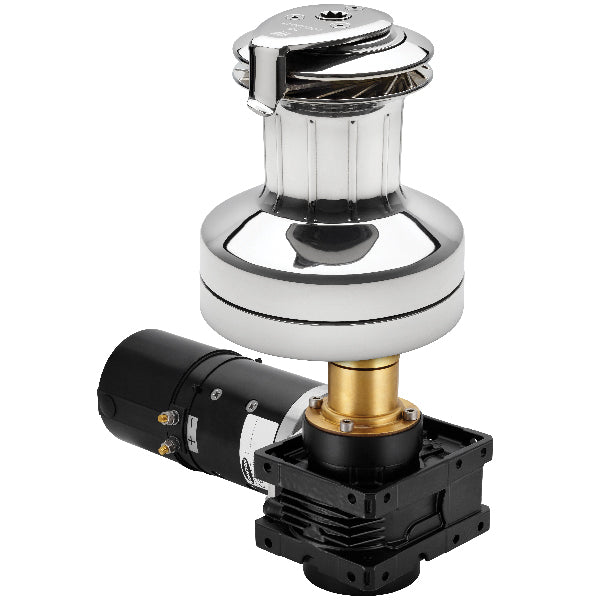

Andersen EL winch 28 FS E1 12V is an electric sheet winch designed to hoist and trim sails at the push of a button. This winch removes the need for physical strength, making it easy for all crew members to handle lines and sails safely.

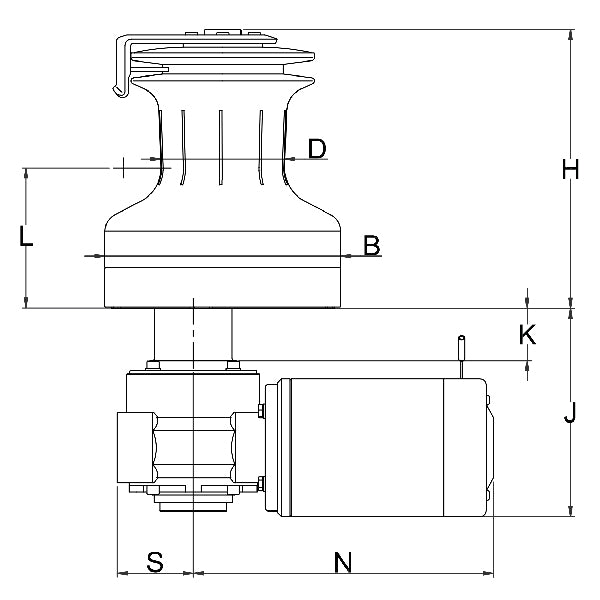

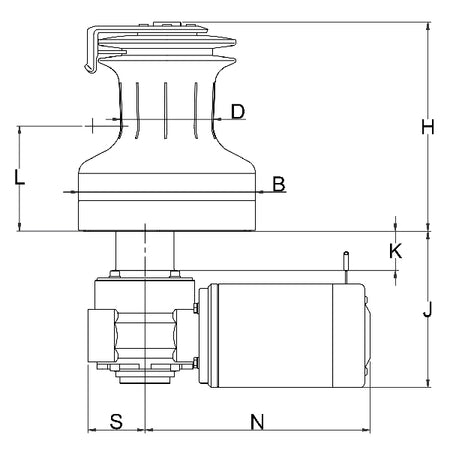

• Brand: Andersen
• B: 125 mm
• D: 70 mm
• Gear: 21
• H: 159 mm
• J: 180 mm
• L: 73 mm
• Max deck: 49 mm
• Motor: 0 HP
• N: 304 mm
• S: 64 mm
• Rope Ø: 8-14 mm
• Type: Winch 28 ST
• Volt: 12 V
• Product weight: 18 kg
• Made in: Denmark
• Packaging dimensions: Dimensions: 40 cm × 60 cm × 40 cm | Gross weight: 20.16 kg

Andersen offers several types of electric winches. The most affordable version is a 1-speed motor, available in sizes from 28 to 72. Here you get a powerful motor and, at the same time, the option of a 2-speed manual winch.

Andersen E1 electric winches allow you to hoist and trim sails of any size at the push of a button. They remove the need for physical strength, making it possible for all crew members to control lines and sails easily and safely.

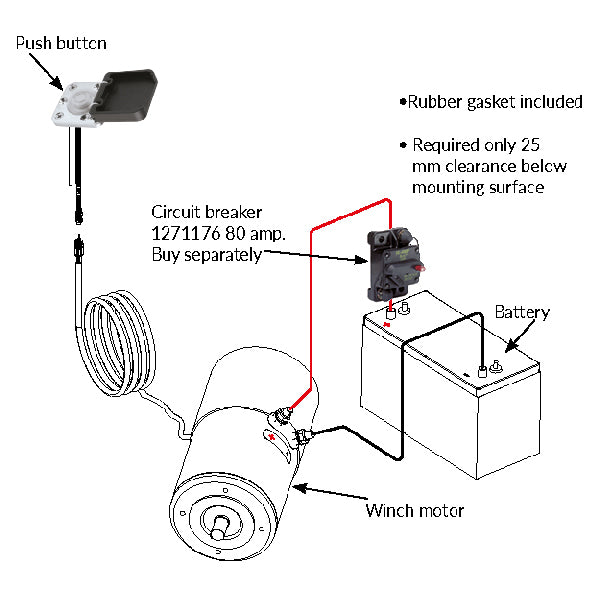

Easy installation The motor has 2 built-in relays, which means a more reliable, neater, and easier installation. Installation only requires connecting positive and negative power cables to the motor terminals and connecting the included push button using the output cable. A circuit breaker, not included, should be installed to protect the installation.

Efficient, high-quality motor At the heart of the E1 winch is a high-quality motor, developed and manufactured in Europe. Carefully matched with the optimal gearbox, it delivers high speed under low load and low speed under high load for safe fine trimming when easing or trimming.

Illuminated “intelligent” Push Button The E1 winch is supplied with a push button with integrated LED that lights up when power to the winch is turned on. The push button has a protective cover that prevents accidental operation and is IP67 waterproof. The push button also functions as a control unit with flash status codes that assist troubleshooting in the event of overload or other faults. A cable for connecting the push button is included for easy installation.

Unmatched monitoring and protection:

• Integrated overload protection - The control is preset to stop the winch if Maximum Pull Load is exceeded. Operation can resume within a few seconds once the load returns below the limit.
• Thermal overload protection - The motor is deactivated in the event of overheating and resets automatically when the temperature returns to normal.
• Reverse polarity protection - An integrated 5 Amp fuse protects the motor against incorrect cable connection.
• Accidental Start Protection - The winch is deactivated if the push button has already been accidentally activated.
• Low Voltage Detection - Operation is deactivated if the battery level is low, preventing further battery drain and avoiding triggering low-voltage reset of navigation instruments and other electronic equipment.
• Continuous Run Time - The winch shuts off if continuous operating time exceeds 10 minutes.
• Manual operation - The winch can still be used as backup in manual mode.
• Incl. switch w/40 cm cable
