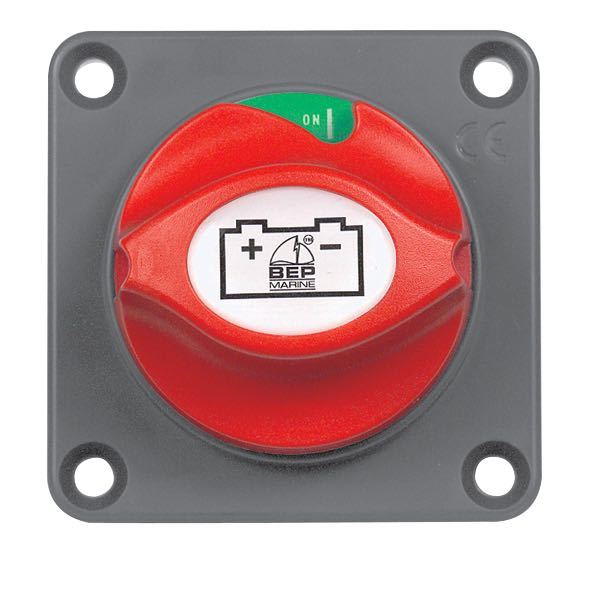

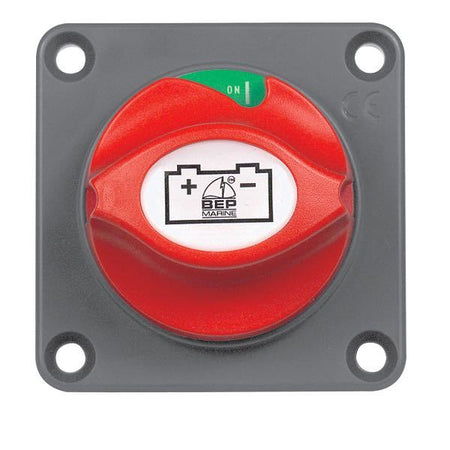

BEP, main switch 275Amp for panel mounting Max 48 V
SKU: 1271085
Delivery time: Approx. +4 weeks
Description
BEP main switch 701PM Medium Duty is a quality marine battery selector switch. It is designed to handle continuous currents of up to 275A and can be used to disconnect power in onboard marine applications.
- Brand: BEP
- Weight: 0.35 kg
- Cable lugs: 2 x10 mm
- Mounting: Front
- Type: ON/OFF
- Volt: Max 48 V
- Product dimensions: 67 mm × 69 mm × 69 mm
- Made in: New Zealand
- Packaging dimensions: Dimensions: 9 cm × 10 cm × 16.5 cm | Gross weight: 0.35 kg
The test is carried out to determine how much voltage the switch can handle without the terminals overheating, i.e. 100 ˚C above ambient temperature.
Continuous = 275A | Short time = 455A | Surge = 1250A Continuous = 1 hour | Short-time load = 5 min. | Surge load = 10 sec.
Key can be removed. Terminals and nuts: tin-plated copper. Spark/ignition protected.
