Ultraflex, Steering cable 'mach' M90 14 feet

Description

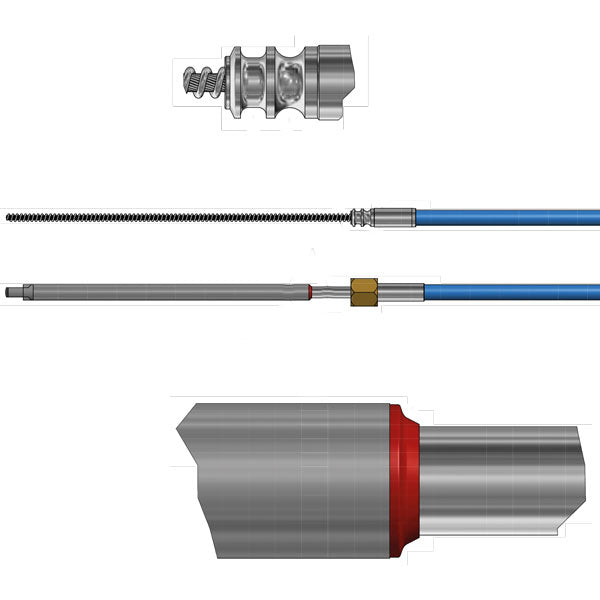

Ultraflex Steering Cable 'mach' M90 is a low-friction cable designed for boat steering. It is flexible and fitted with a rubber seal at the steering tube to prevent moisture ingress.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bending: min. 200 mm
• Stroke: 228 mm
• Product length: 14 feet
• Made in: Italy
• Package dimensions: Size: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

Ultraflex M90 Mach cable is more flexible and a low-friction cable with a rubber seal at the steering tube, to prevent moisture in the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless steel output arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Complies with ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). Also CE approved.

• Eye end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR STEERING BOXES: Fits all Ultraflex boxes except T67

Cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the mounting point in the steering box to the end of the output arm, half extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 feet. So a 13 ft cable must be selected

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30.5 = 11.8 feet. So a 12 ft cable must be selected
