Ultraflex, Steering cable mach M90 17 feet

Description

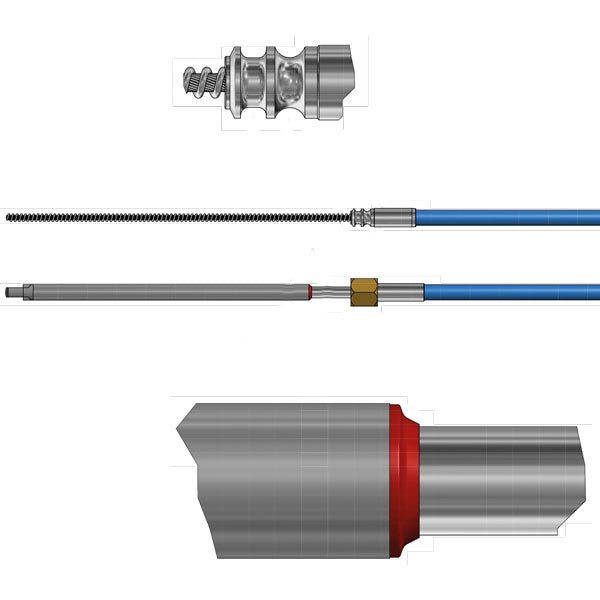

Ultraflex M90 Mach cable is a flexible steering cable with a length of 17 feet. It is used to connect the steering link to the helm on boats and is resistant to ultraviolet light and saltwater.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bend: min. 200 mm
• Stroke: 228 mm
• Product length: 17 feet
• Made in: Italy
• Package dimensions: Dimensions: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

Ultraflex M90 Mach cable is more flexible and a low-friction cable with a rubber seal at the steering link to prevent moisture from entering the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless steel output lever. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Meets ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). Also CE approved.

• Eye at end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR HELMS: Fits all Ultraflex helms except T67

The cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the attachment point in the helm to the end of the output lever when half extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. Example: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 feet. So a 13-foot cable should be chosen

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. Example: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30.5 = 11.8 feet. A 12-foot cable should then be chosen
