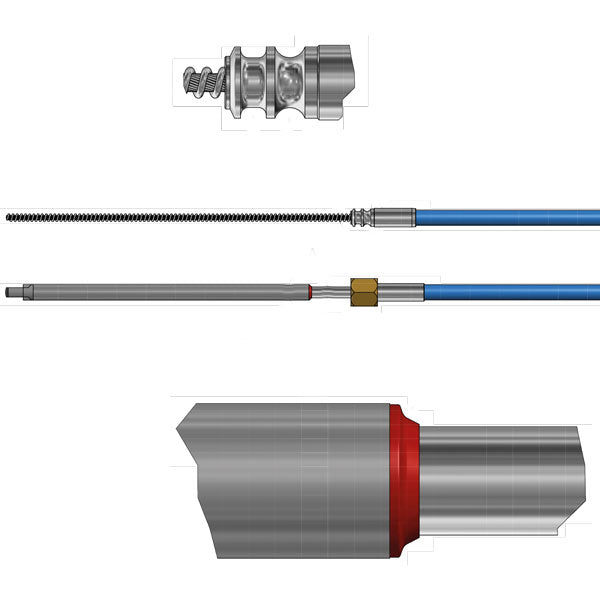

Ultraflex, steering cable "mach" M90 24 feet

Description

Ultraflex M90 Mach cable is a flexible, low-friction steering cable designed to withstand moisture with a rubber seal at the steering tube. It fits all Ultraflex steering boxes except T67 and is made from plastic-coated R/F steel and stainless components.

• Brand: Ultraflex
• Weight: 5.2 kg
• Tensile strength: 1200 kg
• Bend radius: min. 200 mm
• Stroke: 228 mm
• Product length: 24 ft
• Made in: Italy
• Package dimensions: Size: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

Ultraflex M90 Mach cable is more flexible and a low-friction cable with a rubber seal at the steering tube, to prevent moisture from entering the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless steel output arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Meets ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Boat and Yacht Council). CE approved as well.

• Eye at the end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR STEERING BOXES: Fits all Ultraflex boxes except T67

Cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the mounting point in the steering box to the end of the output arm when half extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 x 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 ft. So a 13 ft cable must be selected

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 x 90º bends = 360 cm 360 cm: 30.5 = 11.8 ft. So a 12 ft cable must be selected
