AquaAmp, 400 concealed wireless charger with locking ring 12V 25W

Description

AquaAmp 400 is a hidden, round wireless charging pad designed for discreet flush mounting in the cockpit, console, or dashboard. It provides wireless charging via Qi2 technology, suitable for both leisure and workboats, where functionality and finish matter.

• Brand: AquaAmp
• Weight: 0.02 kg
• Approvals: CE, RoHs, WEEE
• IP rating: IPX7
• Material: Rubber texture
• Type: Wireless Qi2 charging
• Volt: 12 V
• Watt: 25 W
• Ø: 95 mm
• Product dimensions: 6.5 mm
• Made in: Taiwan
• Package dimensions: Gross weight: 0.02 kg

This round charging pad is designed for discreet flush mounting in the cockpit, console, or dashboard, where wireless charging is desired without visible components. It is suitable for both leisure and workboats, where function and finish must go hand in hand. The charging pad is built with fully encapsulated electronics and designed for operation in humid and vibrating environments. It supports wireless charging via Qi and Qi2 technology and can be supplied with magnetic centering, which keeps the phone stable during charging. The product is mounted behind the panel and works through non-metallic surfaces with limited thickness. This makes it compatible with modern smartphones, including models with MagSafe and PixelSnap, depending on the selected variant. The round shape and low installation height provide flexible placement and a consistent look in the instrument panel. An integrated status output can be used for indicator lights or integration into the vehicle's other systems.

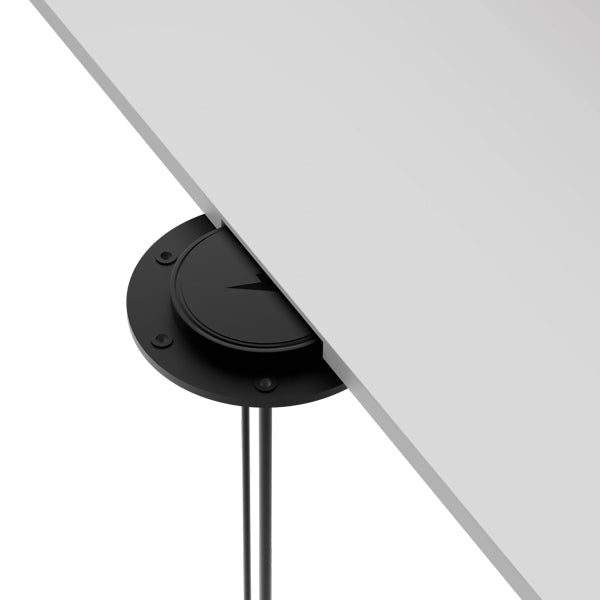

INSTRUCTIONS FOR USE Drill a center hole in the panel and mount the charging pad from the rear. Secure with a locking ring. Ensure the correct distance to the surface. Connect 12 V via a fuse. Check charging with a compatible phone.
