AquaAmp, High Power USB-C outlet 9-24V 100W

Description

AquaAmp High Power USB-C socket is a waterproof PD charger for safely charging laptops and power-hungry equipment. It is designed for 12–24 V systems and delivers up to 100 W of power.

• Brand: AquaAmp
• Weight: 0.02 kg
• Made in: Taiwan
• Package dimensions: Gross weight: 0.02 kg

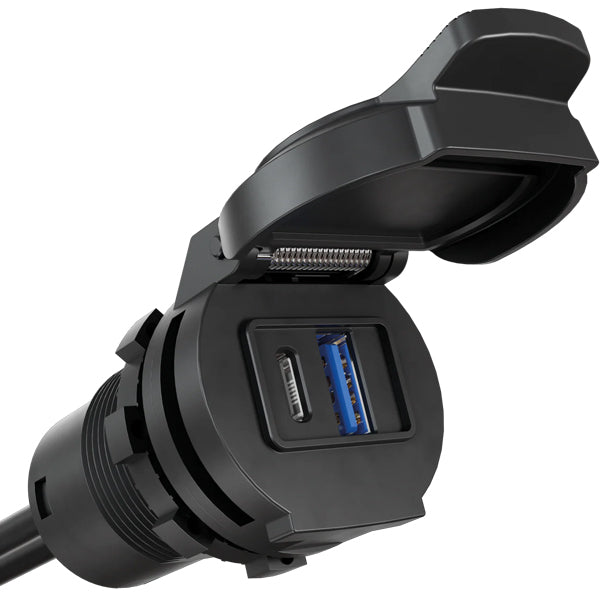

This high-performance USB-C PD charger is developed for marine and mobile installations where high power output and reliability are required. It delivers up to 100 W and is suitable for charging laptops, tablets, and other power-hungry equipment. The charger works with USB-C Power Delivery and automatically handles voltage steps via an integrated PD controller. The controller is built into a heat-dissipating metal housing, ensuring stable operation even under high load. It is compatible with 9–24 V DC systems and supports standard PD profiles up to 20 V / 5 A. This makes it suitable for both 12 V and 24 V installations on boats, vehicles, and special equipment. The construction is waterproof and designed for fixed panel mounting. A spring-loaded cover, seal, and magnetic closure protect the connection from water, dirt, and vibration.

INSTRUCTIONS FOR USE Install in a suitable hole in the panel. Connect to a 9–24 V DC power supply with correct polarity. Connect the USB-C cable. Close the cover after use to maintain waterproofing.

Inline PD Controller: 95 mm (W) × 45 mm (H) × 18 mm (D)
