AquaAmp, High Power USB-C outlet 9-24V 65W

Description

AquaAmp High Power USB-C socket is a waterproof high-performance PD charger. It is designed for safe charging of laptops and other power-hungry devices in 12–24 V systems.

• Brand: AquaAmp
• Weight: 0.02 kg
• Approvals: CE, RoHs, WEEE
• IP rating: IPX7
• Volt: 9-24 V
• Watt: 65 W
• Ø: 28.5 mm
• Product dimensions: 57 mm
• Made in: Taiwan
• Package dimensions: Gross weight: 0.02 kg

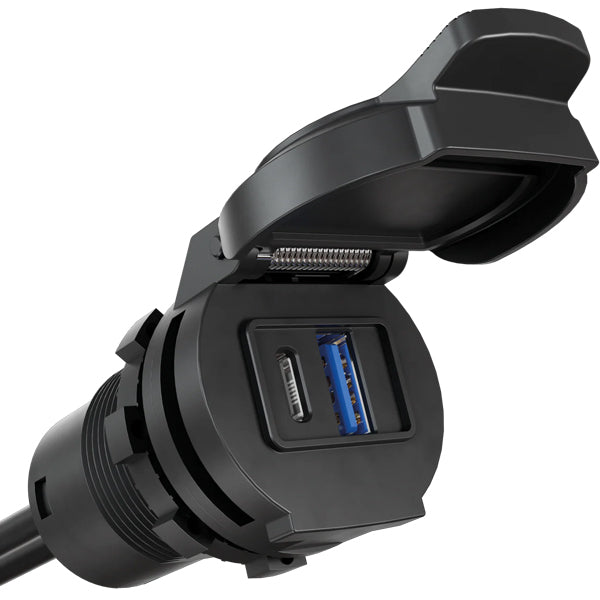

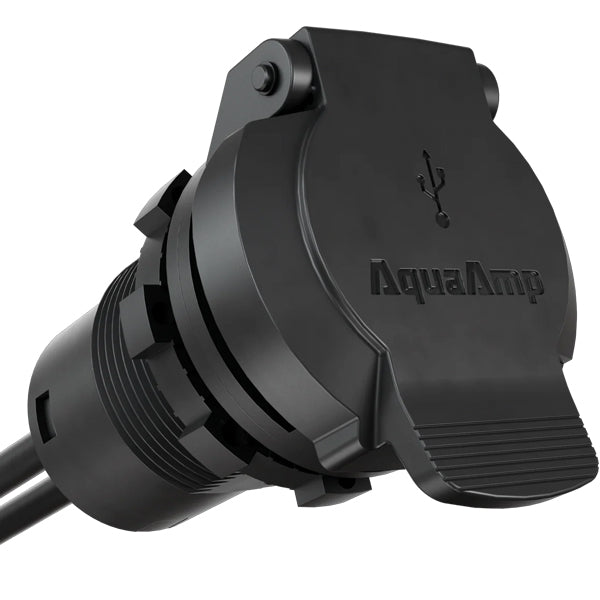

This high-performance USB-C PD charger is designed for marine and mobile installations where high power output and reliability are required. It delivers up to 100 W and is suitable for charging laptops, tablets and other power-hungry equipment. The charger works with USB-C Power Delivery and automatically handles voltage steps via an integrated PD controller. The controller is built into a heat-dissipating metal housing, ensuring stable operation even under high load. It is compatible with 9–24 V DC systems and supports standard PD profiles up to 20 V / 5 A. This makes it suitable for both 12 V and 24 V installations on boats, vehicles and special equipment. The construction is waterproof and intended for fixed panel mounting. A spring-loaded cover, seal and magnetic closure protect the connection from water, dirt and vibration.

INSTRUCTIONS FOR USE Install in a suitable hole in the panel. Connect to a 9–24 V DC power supply with correct polarity. Connect the USB-C cable. Close the cover after use to maintain waterproofing.

Inline PD Controller: 95 mm (W) × 45 mm (H) × 18 mm (D)
