Blue Sea Systems, waterproof switch Contura2 DPDT (On)-Off-(On)

Description

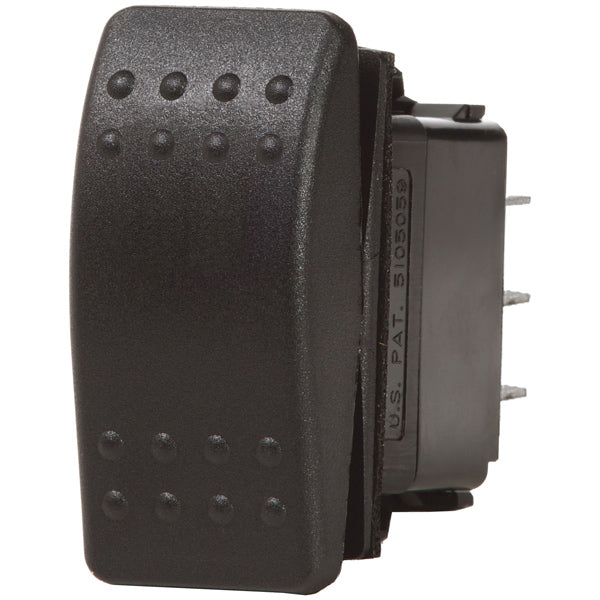

Blue Sea Systems waterproof Contura II DPDT (On)-Off-(On) switch is a reliable switch for boats. It fits into existing Contura electrical panels or can be mounted in separate mounting panels.

• Brand: Blue Sea Systems
• Weight: 0.2 kg
• Switch function: (ON)-OFF-(ON)
• Pole type: DPST
• Package dimensions: Dimensions: 6 cm × 8 cm × 12 cm | Gross weight: 0.2 kg

Switch function (ON) = momentary return spring

Pole types: SPST = single pole and single throw SPDT = single pole and double throw DPST = double pole and single throw DPDT = double pole and double throw

“Pole” refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and function as two identical switches that are mechanically linked).

“Throw” refers to the actuator’s end position: ST switches close a circuit in only one position. The other position of the lever is off. DT switches close a circuit in the Up position, as well as the Down position (On-On). A DT switch can also have a center position (often On-Off-On).
