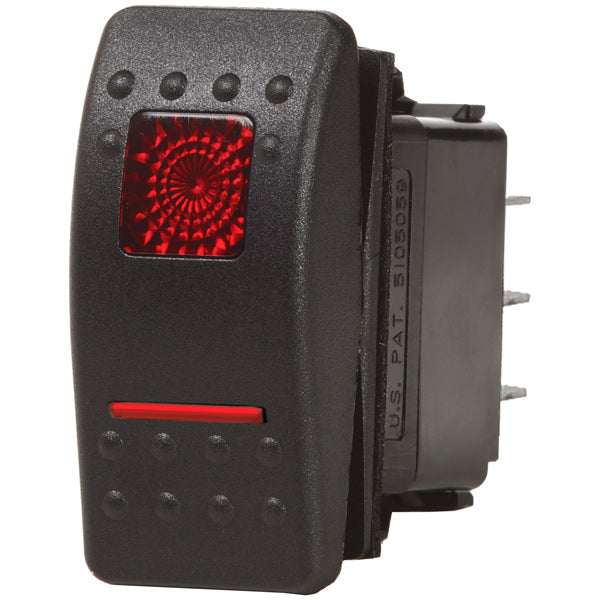

Blue Sea Systems, waterproof switch Contura II SPDT On-Off-On

Description

Blue Sea Systems waterproof switch with double throw function and two LEDs. It is designed to fit existing Contura electrical panels or can be mounted in the matching loose mounting panels.

• Brand: Blue Sea Systems
• Weight: 0.16 kg
• Number of LEDs: 2
• Switch function: ON-OFF-ON
• LED: on at ON
• Pole type: SPDT
• Package dimensions: Gross weight: 0.16 kg

Switch function (ON) = momentary return spring

Pole types: SPST = single pole and single throw SPDT = single pole and double throw DPST = double pole and single throw DPDT = double pole and double throw

Pole refers to the number of circuits controlled by the switch: SP switches control only one electrical circuit. DP switches control two independent circuits (and function as two identical switches mechanically linked together). “Throw” refers to the actuator’s end position: ST switches close a circuit in only one position. The other position of the lever is off. DT switches close a circuit in the Up position as well as the Down position (On-On). A DT switch can also have a middle position (often On-Off-On).
