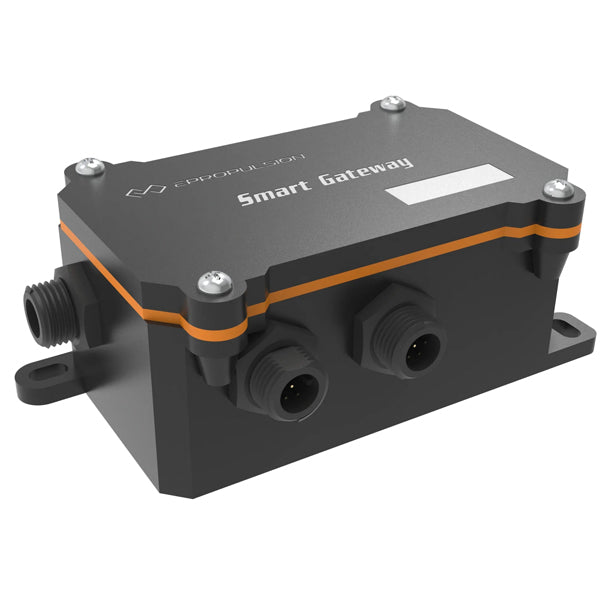

Epropulsion, Smart Gateway RS-485 NMEA 2000 for EVO motor
Regular price
€265,95
incl. VAT
SKU: 1194956
In stock (2 pcs)
Delivery time: 1-3 business days
Shipping: from 13,95 € — exact rate shown in cart
✓Lightning-fast delivery – most orders ship the same day
✓Customer service by phone, chat and email: weekdays 8am-8pm, weekends 10am-4pm
✓14-day right of return for private customers
✓Danish company – online since 2003, CVR 27331939
Description
ePropulsion Smart Gateway converts RS‑485 data to NMEA2000 and integrates electric motor data into your marine network. It gives you a complete overview of motor power and battery state of charge on compatible onboard displays.
- Brand: Epropulsion
- Weight: 0.02 kg
- Dimensions (LxWxH): 101.1 x 50 x 40 mm
- Package dimensions: Gross weight: 0.02 kg
Smart Gateway RS‑485 to N2K connects the ePropulsion Evo system to the boat's NMEA2000 network. It gives you a complete overview of motor power, battery state of charge and other key data directly on compatible onboard displays. This makes operation easier to follow and helps you monitor energy consumption while underway. The gateway receives system data from ePropulsion motors and accessories via the RS‑485 connection. It then sends the information onward through the NMEA2000 bus via its CAN interface. Power is supplied via the CAN connection, making installation simple and without an external power supply. The unit can handle multiple RS‑485 sources at the same time through three separate ports. This provides installation flexibility and makes it suitable for Evo motors with extra accessories or battery packs. The CAN port ensures stable data transfer and compatibility with common marine MFDs. Data such as state of charge (SOC) and motor power are shown here in real time, so you can plan range and load more accurately.
- Function: RS‑485 to NMEA2000 gateway
- RS‑485 ports: 3 pcs.
- CAN interface (NMEA2000): 1 pc.
- Power supply: Via CAN interface
- Data shown (examples): State of charge (SOC), motor power (via MFD integration)
- Compatibility: ePropulsion Evo series and more
Specifications
| Brand | Epropulsion |
|---|---|
| SKU | 1194956 |
| EAN | 6971312633283 |
| Stock | Yes (2 pcs) |
| Product family | Accessories for electric motor |
| Shipping type | Standard package |
| Vægt | 0.02 kg |
| Dimensioner | 101.1 x 50 x 40 mm |
| RS‑485‑porte | 3 stk. |
| CAN‑interface (NMEA2000) | 1 stk. |
| Strømforsyning | Via CAN‑interface |
