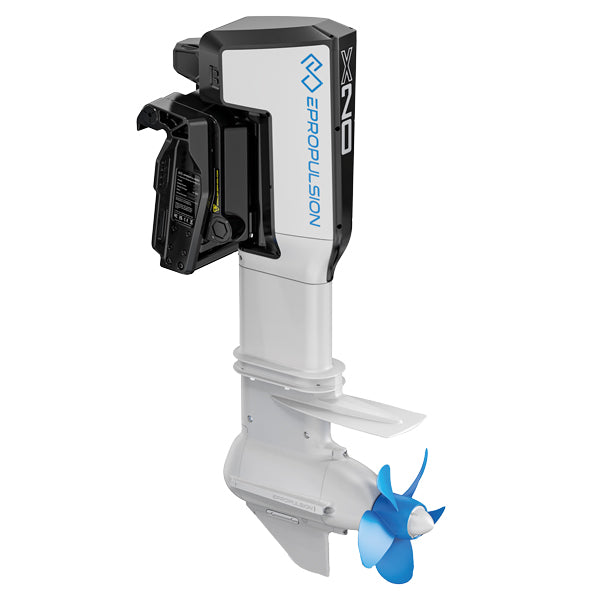

Epropulsion, X-20 outboard motor XL shaft

Description

ePropulsion X-20 is an advanced electric outboard motor with an output of 20 kW. It is designed for both recreational and commercial boating and is ideal for dinghies as well as heavier boats weighing up to 10,000 kg.

• Brand: Epropulsion
• Weight: 0.1 kg
• Shaft length: 635 mm
• Dimensions (LxWxH): 674 x 360 x 1356 mm
• Input Power: 20 kW
• Cooling system: Integrated liquid cooling circuit
• Motor weight: 81 kg
• Rated voltage: 96 V
• Rated rpm: 1200 - 1800
• Steering angle: +/- 45°
• Steering: Integrated electric steering
• Tilt and trim: Power trim/tilt
• Tilt/trim angle: -4 - 61 °
• Package dimensions: Gross weight: 0.1 kg

ePropulsion X-20 – Powerful and sustainable electric outboard motor ePropulsion X-20 is an advanced electric outboard motor with an output of 20 kW, designed for both recreational and commercial boating. It combines high performance with environmentally friendly technology and is ideal for dinghies as well as heavier boats weighing up to 10,000 kg.

Key features

Zero-emission propulsion system with a drivetrain efficiency of 88.2 % Integrated electric steering – no hydraulics, easy installation and maintenance Power trim and tilt with angle from -4° to 61° for optimal maneuvering Modular design – easy integration with solar power and other renewable energy sources Advanced driving-assistance functions and digital connectivity via Smart Display and remote control

Specification:

• Short shaft (X20-L)
• Long shaft (X20-XL)
• Input power 20 kW
• Rated voltage 96 V DC
• Cooling system Liquid cooling
• Rated RPM1200 – 1800
• Steering angle±45°±45°Tilt/trimPower
• Shaft length 508 mm 635 mm
• Dimensions (LxWxH)674 x 360 x 1229 mm674 x 360 x 1356 mm
• Motor weight 79 kg and 81 kg
• Propeller15” x 10 3/4” and 13 3/8” x 16 3/4” (L&R rotation)

ePropulsion X-20 is suitable for:

Dinghies up to 1,000 kg Heavily loaded boats up to 10,000 kg Professional boating, rental and tourism Environmentally sensitive areas where noise and emissions must be minimized

Advantages of electric propulsion

Quiet operation – enjoy nature without engine noise Minimal maintenance – no oil, fuel or exhaust Long service life – robust construction and quality components Smart connectivity – compatible with ePropulsion’s digital control systemsZero-emission propulsion system with a drivetrain efficiency of 88.2 % Integrated electric steering – no hydraulics, easy installation and maintenance Power trim and tilt with angle from -4° to 61° for optimal maneuvering Modular design – easy integration with solar power and other renewable energy sources Advanced driving-assistance functions and digital connectivity via Smart Display and remote control

Minimum 2x G102-100 Item no.: 1194743

Propeller: 15'' x 10 3/4'' propeller (available in left & right rotation) 13 3/8'' x 16 3/4" propeller (available in left & right rotation)
