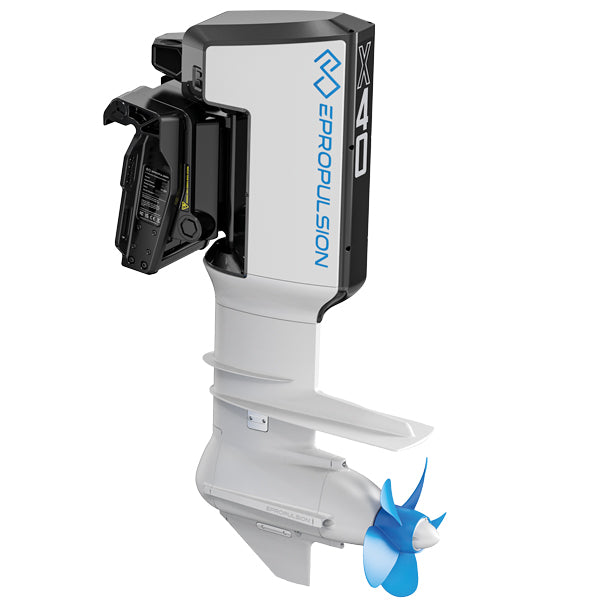

Epropulsion, X-40 outboard motor 40 kW long shaft

Description

ePropulsion X-40 is an electric outboard motor designed for recreational boaters and professionals. It delivers 40 kW of continuous power, which is equivalent to a traditional 60 hp gasoline engine, and operates without noise, vibration, or emissions.

• Brand: Epropulsion
• Weight: 0.1 kg
• Shaft length: 508 mm
• Dimensions (LxWxH): 7573601233 mm
• Input Power: 40 kW
• Cooling system: Closed liquid cooling circuit
• Motor weight: 104 kg
• Rated voltage: 96 V
• Rated rpm: 1500 - 2100
• Steering angle: +/-45°
• Steering: Integrated electric steering
• Tilt and trim: Power tilt/trim
• Package dimensions: Gross weight: 0.1 kg

ePropulsion X-40 – The electric outboard motor of the future Discover a new era in electric boat propulsion with the ePropulsion X-40, a groundbreaking electric outboard motor designed for both recreational boaters and professionals. With an impressive drivetrain efficiency of 88.2%, zero emissions, and advanced technology, the X-40 sets new standards for performance, sustainability, and ease of use.

Powerful and environmentally friendly performance The ePropulsion X-40 delivers 40 kW of continuous power, equivalent to a traditional 60 hp gasoline engine, but without noise, vibration, or harmful emissions. The motor is ideal for boats with larger hulls and deeper waterlines, and it is available with both long and extra-long shafts (508 mm and 635 mm).

Advanced technology and intelligent control The motor is equipped with integrated electric steering, power tilt/trim, and a smart control system that makes operation intuitive and precise. With features such as Position Hold, Heading Hold, and 360 Motions, you get safe and comfortable boating, even in demanding conditions.

Compact and lightweight design The X-40 has a compact and fully integrated design that takes up to 60% less space than traditional motors and weighs up to 65% less than gasoline engines. This makes installation easier and improves balance in the boat.

Hydrogeneration and sustainability With built-in hydrogeneration, the battery can be charged while underway by using the movement of the water. The modular architecture makes it possible to integrate the motor with renewable energy sources, supporting more sustainable boating. Specifications:

• Power: 40 kW
• Voltage: 96 V DC
• Cooling: Closed liquid cooling
• Weight: 104–106 kg depending on shaft length
• Dimensions: 757 x 360 x 1233/1360 mm
• Steering angle: ±45°
• Propellers: 15'' x 10 ¾'' and 13 ⅜'' x 16 ¾'' (left- and right-hand rotation)

Benefits of the ePropulsion X-40

• Zero emissions – ideal for environmentally conscious boaters
• Quiet operation – under 73 dBA
• Minimal maintenance
• Plug-and-play installation
• Smart monitoring and remote control via ePropulsion Connectivity Service
• Up to 5,000 hours of service life under normal conditions

ePropulsion X-40 is not just a motor – it is an investment in the future of boating. Whether you boat for pleasure or professionally, the X-40 offers a combination of efficiency, comfort, and sustainability that is hard to match.

Minimum 4x G102-100 Batteries, Item No.: 1194743

Propellers: 15'' x 10 3/4'' propellers (available in left & right rotation) 13 3/8'' x 16 3/4" propellers (available in left & right rotation)
