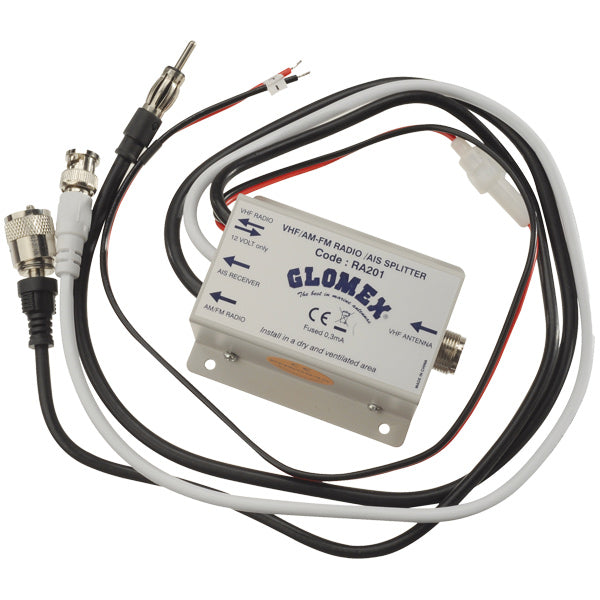

Glomex, RA201 VHF/AM-FM/AIS splitter 12V

Description

The RA201 antenna splitter makes it possible to use one VHF antenna to receive AM/FM and AIS radio signals simultaneously. In addition, VHF radio can also be used.

• Brand: Glomex
• Weight: 0.54 kg
• Frequency: 100-200 kHz
• Max power: 100 W
• Max consumption: 25 mA
• Voltage: 12 V
• Package dimensions: Dimensions: 5 cm × 12 cm × 21.5 cm | Gross weight: 0.54 kg

The RA201 antenna splitter makes it possible to use only one VHF antenna to receive AM/FM and AIS radio signals simultaneously; in addition, VHF radio can also be used.

Specifications:

• Impedance: 50 Ohm
• Frequency range for VHF, AIS and radio: 100-200 MHz
• VHF power range: from 0,2 - max 100 watts
• Maximum consumption: 25 mA
• Power supply: 13,8 V (from 10 V min. to 16 V max.)
• Cable supply: length 60 cm red (+) and black (-)
• Protection: glass fuse 5×20 mm -315 mA (included)

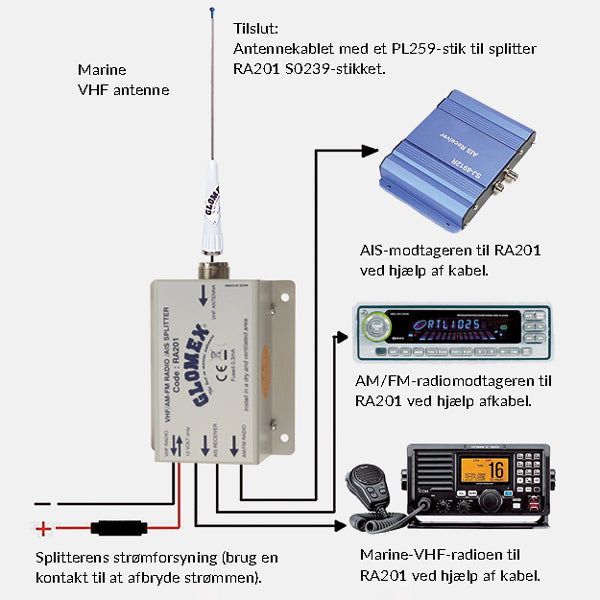

Connections:

• VHF antenna: SO239 connector
• VHF: RG 58 C/U cable 60 cm long + male PL259 connector
• Radio: RG 59 A/U cable 60 cm long + male Motorola connector
• AIS: RG 58 C/U cable 60 cm long + male BNC connector
• Housing: length 83 mm x width 48 mm x height 38 mm
• Anti-spreading metal-epoxy paint, highly resistant to rust and oxidation
• Mounting: 4 pcs. M4 screws
