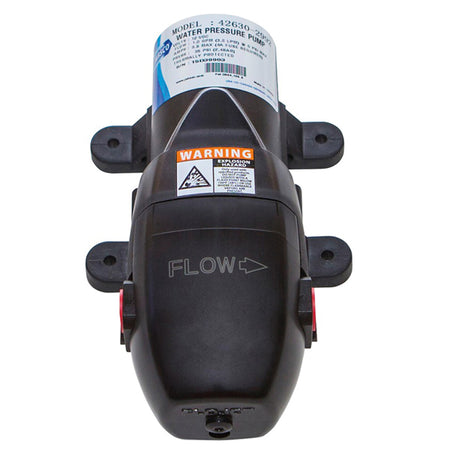

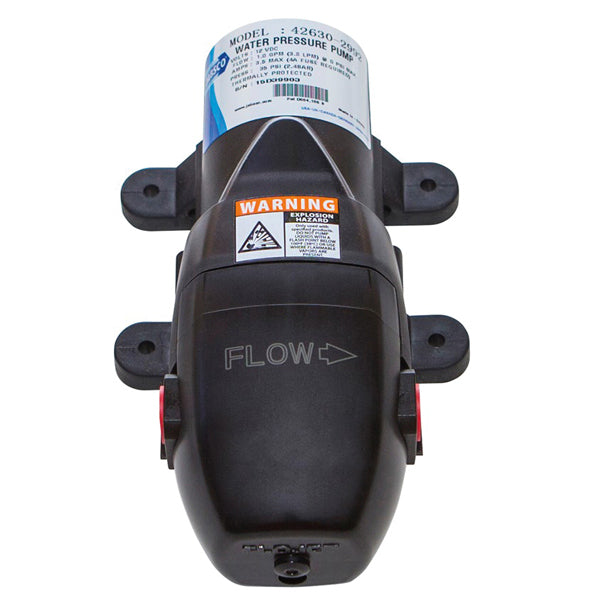

Jabsco, par-max 1 pressure water pump 2,4bar 12V

Description

Jabsco Par-Max 1 is a freshwater pressure pump with a capacity of 3.8 l/min. It is activated by a pressure switch when the pressure drops and is ideal for onboard use where water demand varies.

• Brand: Jabsco
• Weight: 1.82 kg
• Capacity: 3.8 l/m
• Max pressure: 2.4 bar
• Original no.: 42630-3512-3C
• Pressure: 35 psi
• Volt: 12 V
• Packing dimensions: Dimensions: 12 cm × 16 cm × 24 cm | Gross weight: 1.82 kg

The pumps are available in different sizes depending on the need. The capacity should be assessed based on the requirements on board. This includes, for example, the number of water outlets and whether toilets are connected to the pressure water system.

A freshwater pressure pump works with a pressure switch that activates the pump if the pressure drops. The pressure drops when a tap is opened, and shortly after that the pump will start and pressurize the water. When the tap is closed, the pressure in the hose increases and the pump will stop. If you want to be able to use a small amount of water without necessarily activating the pump, an expansion tank can be installed on the system. In that case, water will be drawn from the tank first, without the pump needing to start until the pressure has dropped. Par-Max 1 is supplied with 6 and 10 mm hose connections
