Lenco, trim tab set Edge Mount 9x12" w/o panel

Description

Lenco trim tab set Edge Mount improves your boat’s handling by providing better control and lower fuel consumption. The set includes 2 cylinders, trim tabs with mounting brackets, and cable for easy installation.

• Brand: Lenco
• Weight: 7.12 kg
• Volt: 12 V
• Size: 912
• Boat size: 16 - 25 feet
• Made in: USA
• Package dimensions: Dimensions: 33 cm × 36 cm × 13 cm | Gross weight: 7.12 kg

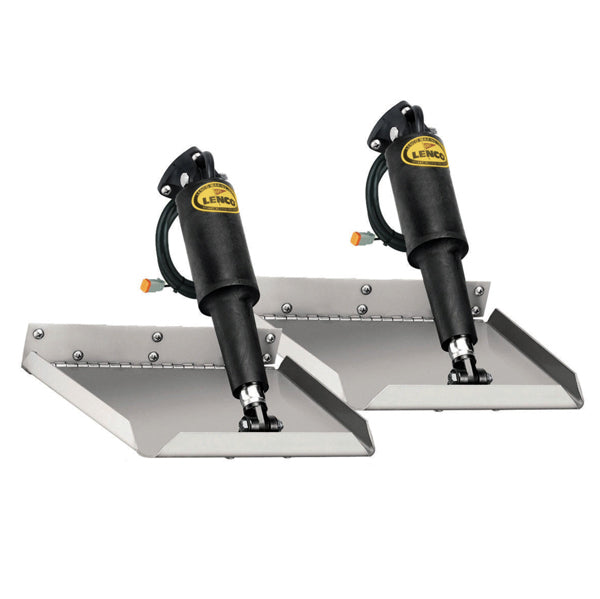

The trim tab set consists of 2 cylinders fitted with 1.8 m cable, 2 trim tabs with mounting brackets and screws, and a 6.1 m extension cable fitted with connectors for plug and play. REMEMBER control panel.

How do you use trim tabs?

In waves, trim tabs should be lowered slightly by pressing Bow Down on both switches. This brings the bow down while maintaining speed. This adjustment helps the hull absorb the impact of waves, resulting in a more efficient and comfortable ride. In waves, trim tabs should be fully raised by pressing Bow Up on the switches. The trim tabs help lift the stern so the bow does not dig into the waves.

In side wind, trim tabs are lowered on the leeward side by pressing Bow Down on the windward side until the boat is level, reducing spray and providing a more comfortable ride.

With side weight, trim tabs are lowered on the side where the weight is by pressing Bow Down on the weighted side until the boat is level, reducing spray and providing a more comfortable ride.

When starting off, trim tabs are lowered fully by pressing Bow Down on both sides. This gives the stern more buoyancy and lowers the bow of the boat. When you accelerate, the speed increases and you adjust the trim by pressing Bow Up on both switches until the trim feels right.

Safety while the boat is underway: trim tabs should be used with caution, as they have a major effect on the boat’s stability.

Lenco is the leading manufacturer of electric trim tabs. Electric trim tabs are distinguished by easy installation, lower power consumption, and oil-free operation.
