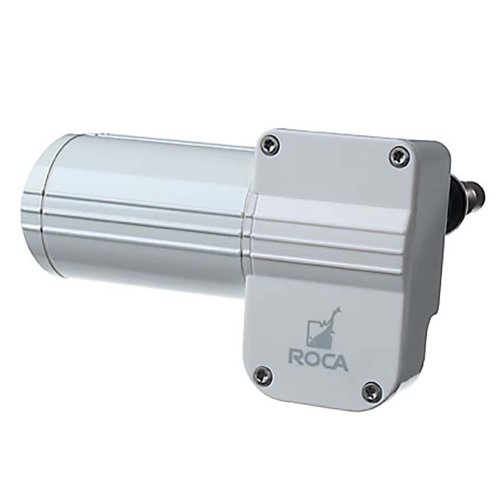

Roca, wiper motor W12 24v 90mm

Description

Roca wiper motor W12 is a completely waterproof wiper motor designed for boats that require reliability. It has a torque of 12 Nm and offers stepless adjustment of the wipe angle from 45˚ to 110˚.

• Brand: Roca
• Weight: 1.89 kg

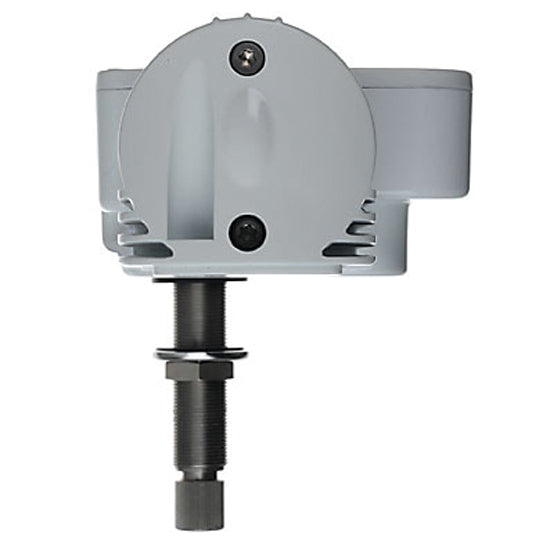

• Shaft length: 94 mm
• Shaft Ø: 13.8 mm
• IP rating: IP65
• Material: Aluminium
• Max hull thickness: 68 mm
• Volts: 24 V
• Package dimensions: Dimensions: 17 cm × 12 cm × 20 cm | Gross weight: 1.89 kg

Roca's wiper motor has an insulated chassis, so it can also be used on metal boats. Stepless adjustment of the wipe angle from 45˚ to 110˚ for maximum visibility makes it easy to adapt to your needs, and makes it very popular among boat owners. The angle can easily be changed after installation. Adjustable self-parking in right or left position/side. The wiper shaft is made of Ø13.8 mm stainless steel.

2 speeds; slow: 35 strokes/minute, fast: 55 strokes/minute. 100% waterproof, compact housing, made of aluminium. Max arm/blade combination length 610 mm x 560 mm.

Approvals: CE approved: EN55 014 - EMC directive 89/336/EEC. EN60335-1: 94. The product has CE marking in accordance with the low voltage directive 72/23/EEC.
