Rutland, SeaTec, Rutland HRSi Regulator 12 & 24V 80×130 mm

Description

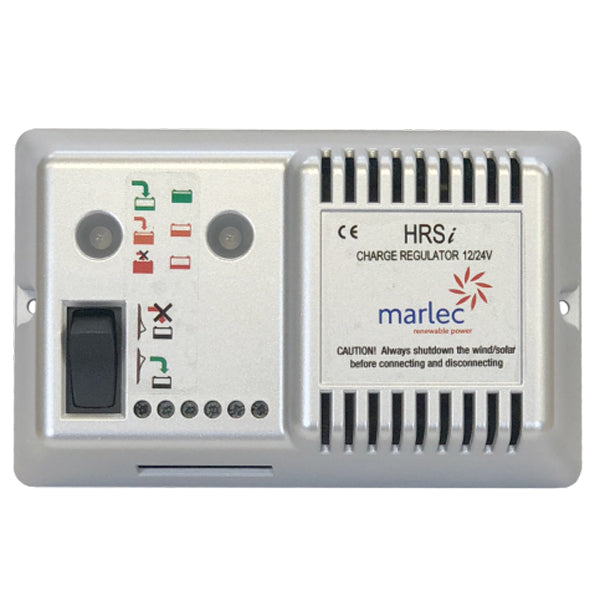

Rutland HRSi Regulator is a compact charge controller designed for smaller marine energy systems. It enables a wind generator and solar panels to work together for efficient charging of a single battery bank and also protects against overcharging.

• Capacity: 1 wind generator + solar panels up to 160 W
• Mounting: Wall mounting
• Voltage: 12/24 V
• Product weight: 185 g
• Product dimensions: 130 mm × 80 mm × 42 mm
• Made in: United Kingdom
• Package dimensions: Gross weight: 0.21 kg

Compact charge controller for wind generators and solar panels with automatic 12/24 V selection and effective battery protection LONG DESCRIPTION This charge controller has been developed for smaller marine energy systems, where a wind generator and solar panels work together to charge a single battery bank. It ensures stable charging and protects batteries and electronics from overcharging. The controller uses PWM technology with an intelligent microcontroller that monitors battery voltage and regulates the charging power continuously. When the battery approaches full charge, the current is automatically reduced to float charging, which extends the service life of both the battery and the wind generator. It is intended for use with Rutland wind generators and can also accept input from solar panels up to 160 W. Automatic voltage recognition makes it suitable for both 12 V and 24 V systems without manual adjustment. Clear LED indicators show battery status and charging mode so operation can be monitored quickly. An integrated stop switch makes it easy and safe to disconnect charging during servicing or installation. INSTRUCTIONS Install the controller in a dry, ventilated location close to the battery. Always connect the battery first for correct voltage selection. Then connect the wind generator and solar panels with the correct polarity. Use the stop switch during installation and maintenance.
