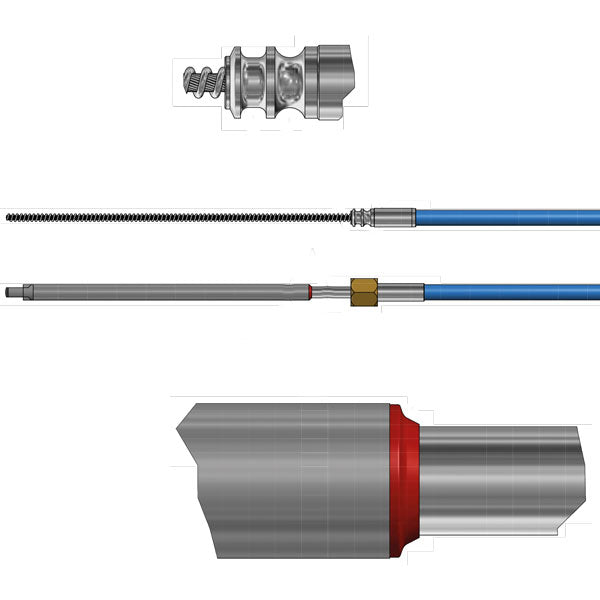

Ultraflex, steering cable 'mach' M90 10 feet

Description

The Ultraflex M90 Mach steering cable is designed to deliver smooth-running and flexible steering. It fits all Ultraflex helm boxes except T67 and is especially well suited for boats that require reliable and efficient control.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bending: min. 200 mm
• Stroke: 228 mm
• Product length: 10 ft
• Made in: Italy
• Package dimensions: Dimensions: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

The Ultraflex M90 Mach cable is more flexible and a smooth-running cable with a rubber seal at the steering tube to prevent moisture from entering the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless-steel output arm. Resistant to ultraviolet light and salt water. Exceptionally flexible and always smooth-running. Meets ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). Also CE approved.

• Eye at end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR HELM BOXES: Fits all Ultraflex boxes except T67

The cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the mounting point in the helm box to the end of the output arm half extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 ft. Therefore, a 13 ft cable should be selected

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30.5 = 11.8 ft. Therefore, a 12 ft cable should be selected
