Ultraflex, Steering cable "mach" M90 13 feet

Description

Ultraflex M90 Mach cable is a flexible steering cable measuring 13 feet in length. It is designed to connect steering boxes, except T67, and provides smooth operation and resistance to moisture.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bending: min. 200 mm
• Stroke: 228 mm
• Product dimensions: 13 feet
• Made in: Italy
• Packaging dimensions: Dimensions: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

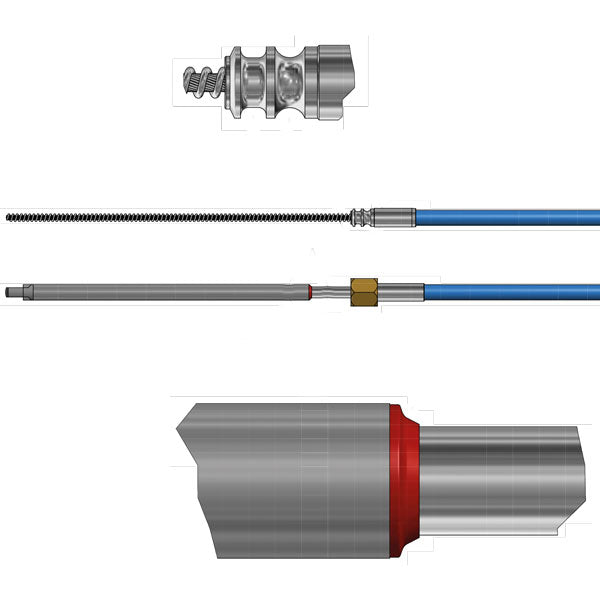

Ultraflex M90 Mach cable is more flexible and a smooth-running cable with a rubber seal at the steering tube, to prevent moisture from entering the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless steel actuator arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Meets ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). Also CE approved.

• Eye at end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR STEERING BOXES: Fits all Ultraflex boxes except T67

The cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the mounting point in the steering box to the end of the actuator arm when half extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 x 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 feet. Therefore, a 13-foot cable must be selected

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 x 90º bends = 360 cm 360 cm: 30.5 = 11.8 feet. A 12-foot cable should then be selected
