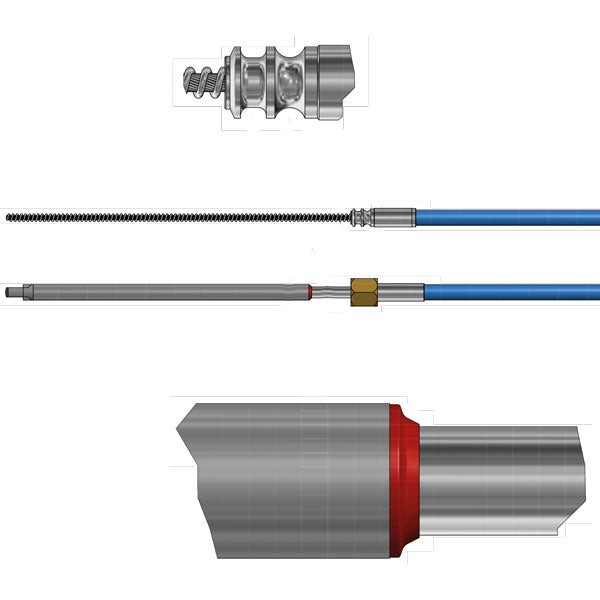

Ultraflex, steering cable "mach" M90 15 feet

Description

Ultraflex M90 Mach cable is a low-friction steering cable designed to prevent moisture at the steering tube with its rubber seal. It is suitable for all Ultraflex steering helms except T67 and delivers outstanding flexibility and resistance to ultraviolet light and saltwater.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bending: min. 200 mm
• Stroke: 228 mm
• Product length: 15 ft
• Made in: Italy
• Package dimensions: Dimensions: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

Ultraflex M90 Mach cable is more flexible and a low-friction cable with a rubber seal at the steering tube to prevent moisture in the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless steel push arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Meets ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). Also CE approved.

• Eye at end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR STEERING HELMS: Fits all Ultraflex helms except T67

Cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the attachment point in the steering helm to the end of the push arm halfway extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 ft. So a 13 ft cable must be selected

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. Ex.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30.5 = 11.8 ft. So a 12 ft cable must be selected
