Ultraflex, Steering cable "mach" M90 26 feet

Description

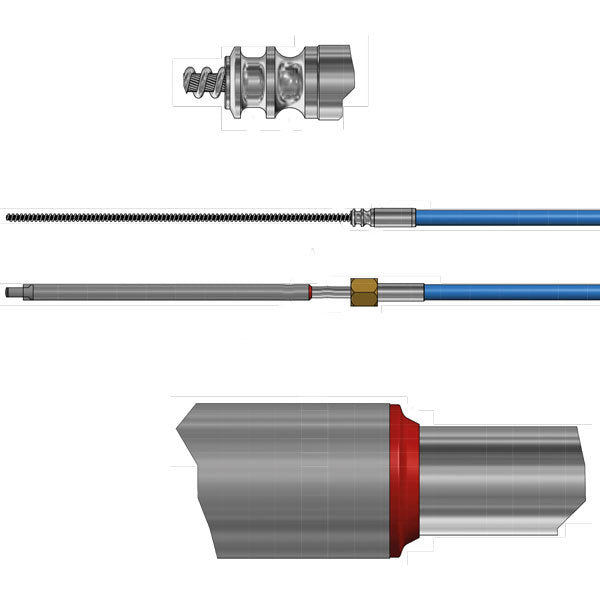

Ultraflex M90 Mach cable is a low-friction steering cable designed to resist moisture with its rubber seal at the steering tube. It is made of plastic-coated R/F steel and is compatible with all Ultraflex steering helms except T67.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bend radius: min. 200 mm
• Stroke: 228 mm
• Product size: 26 ft
• Made in: Italy
• Packaging size: Size: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

Ultraflex M90 Mach cable is more flexible and a low-friction cable with a rubber seal at the steering tube to prevent moisture from entering the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless steel push arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Meets ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). CE approved as well.

• Eye end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR STEERING HELMS: Fits all Ultraflex helms except T67

The cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the mounting point in the steering helm to the end of the push arm halfway extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 x 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 ft. So a 13 ft cable should be chosen

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. E.g.: A = 50 + B = 250 + C = 80 minus 20 cm for 2 x 90º bends = 360 cm 360 cm: 30.5 = 11.8 ft. So a 12 ft cable should be chosen
