Ultraflex, steering cable mach M90 27 feet

Description

Ultraflex M90 Mach steering cable is designed for light and flexible boat steering. The cable is suitable for all Ultraflex steering boxes, except T67, and has a length of 27 feet.

• Brand: Ultraflex
• Weight: 5.2 kg
• Breaking strength: 1200 kg
• Bend: min. 200 mm
• Stroke: 228 mm
• Product dimensions: 27 feet
• Made in: Italy
• Package dimensions: Dimensions: 6.5 cm × 51 cm × 82 cm | Gross weight: 5.2 kg

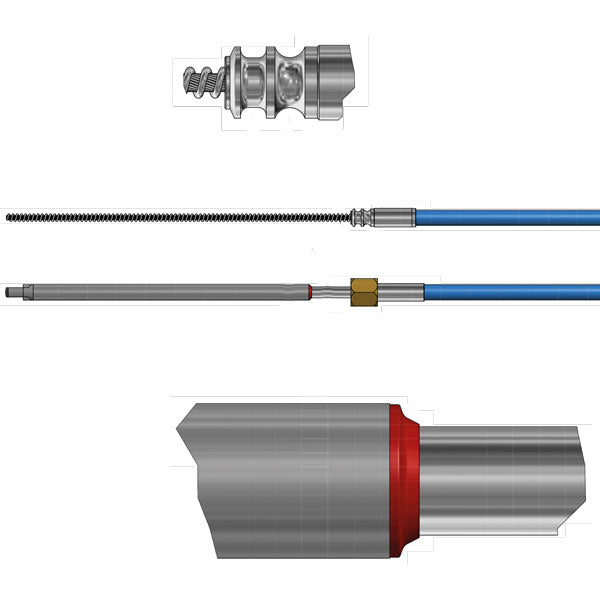

Ultraflex M90 Mach cable is more flexible and a low-friction cable with a rubber seal at the steering tube to prevent moisture from entering the cable.

ULTRAFLEX steering cables are made of plastic-coated R/F steel with a steel inner cable and stainless steel push arm. Resistant to ultraviolet light and saltwater. Exceptionally flexible and always smooth-running. Complies with ISO 9000 and EN 29000. Approved by Det Norske Veritas and A.B.Y.C. (American Board and Yacht Council). Also CE approved.

• Eye end Ø: 10 mm
• Outer cable Ø: 16 mm
• Inner cable Ø: 8 mm

FOR STEERING BOXES: Fits all Ultraflex boxes except T67

Cable type and length are always printed on the outer cable. The length is in feet (305 mm) and measured from the attachment point in the steering box to the end of the push arm halfway extended.

Example A (Fig. 1) Length = A+B+C minus 10 cm for each 90º bend + 30.5 cm for mounting on the engine. Example: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 + 30.5 cm = 390.5 cm 390.5 cm : 30.5 = 12.8 feet. So a 13-foot cable should be selected

Example B (Fig. 2+3) Length = A+B+C minus 10 cm for each 90º bend. Example: A = 50 + B = 250 + C = 80 minus 20 cm for 2 pcs. 90º bends = 360 cm 360 cm: 30.5 = 11.8 feet. So a 12-foot cable should be selected
