Ultraflex, Control cable c16 quicksilver standard 10 feet

Description

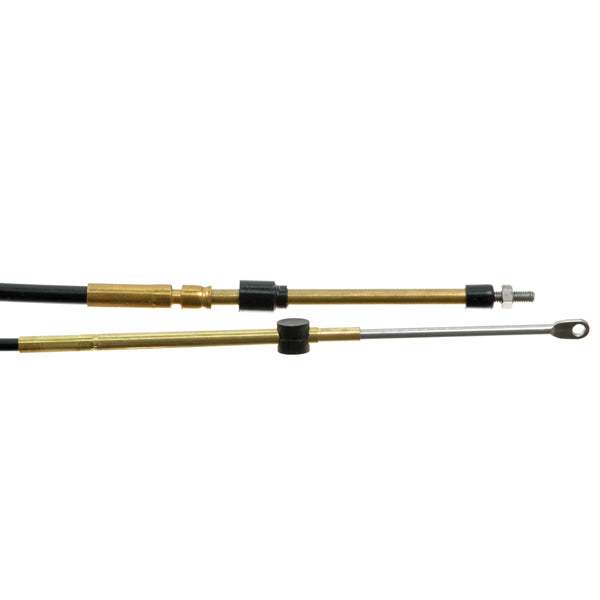

Ultraflex control cable c16 is designed to connect a Quicksilver box to Yamaha engines. The cable is 10 feet long and ensures smooth control with a stroke of 80 mm.

• Brand: Ultraflex
• Weight: 0.8 kg
• Stroke: 80 mm
• Product dimensions: 3.05 m
• Made in: Italy
• Package dimensions: Dimensions: 4 cm × 43.5 cm × 44 cm | Gross weight: 0.8 kg

From Quicksilver box to Yamaha engine end (standard). Stroke: 80 mm

ULTRAFLEX engine control cables are made of plastic-coated stainless steel. Resistant to UV light and saltwater, with exceptional flexibility, strength, and always smooth operation. Meets all engine manufacturers' requirements and can be adapted to virtually all engines using special fittings.

HOW TO FIND OUT HOW LONG YOUR CABLE NEEDS TO BE:

• Measure the distance from the center of your engine to the corner of the boat, line A.
• Then measure the distance from the center of your control box to the corner of the boat, line B.
• Then add the two lengths together (A+B), then add 3 feet so the cable is long enough for the engine to have full freedom of movement.
• Gear/throttle cable = total length.
