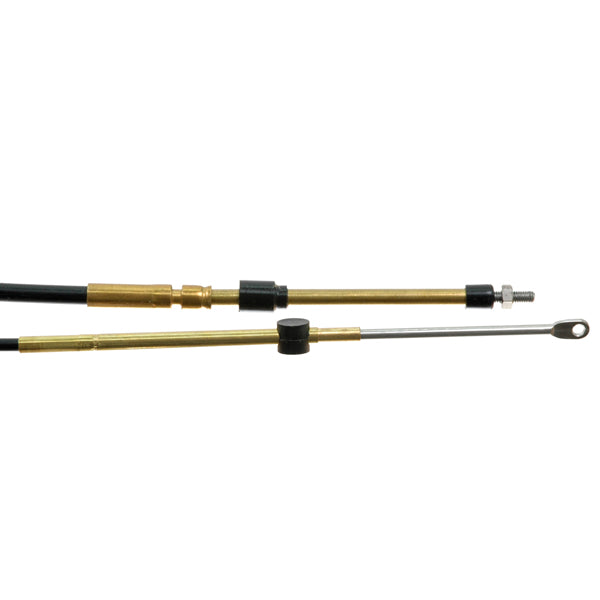

Ultraflex, Control cable c16 quicksilver standard 12 feet

Description

Ultraflex control cable c16 quicksilver standard is an engine control cable designed to connect a Quicksilver control box to Yamaha engines. The cable is 3.66 meters long and is suitable for boats with standard engine installations.

• Brand: Ultraflex
• Weight: 0.9 kg
• Stroke: 80 mm
• Product dimensions: 3.66 m
• Made in: Italy
• Package dimensions: Dimensions: 4 cm × 43.5 cm × 44.5 cm | Gross weight: 0.9 kg

From Quicksilver box to Yamaha engine end (standard). Stroke: 80 mm

ULTRAFLEX engine control cables are made of plastic-coated stainless steel. Resistant to UV light and salt water, with exceptional flexibility, strength, and consistently smooth operation. Meets all engine manufacturers' requirements and, with special fittings, can be adapted to virtually all engines.

HOW TO FIND OUT HOW LONG YOUR CABLE NEEDS TO BE:

• Measure the distance from the center of your engine to the corner of the boat, line A.
• Then measure the distance from the center of your control box to the boat's corner, line B.
• Then add the two lengths together (A+B), then add 3 feet so the cable is long enough for the engine to have full freedom of movement.
• Gear/throttle cable = total length.
