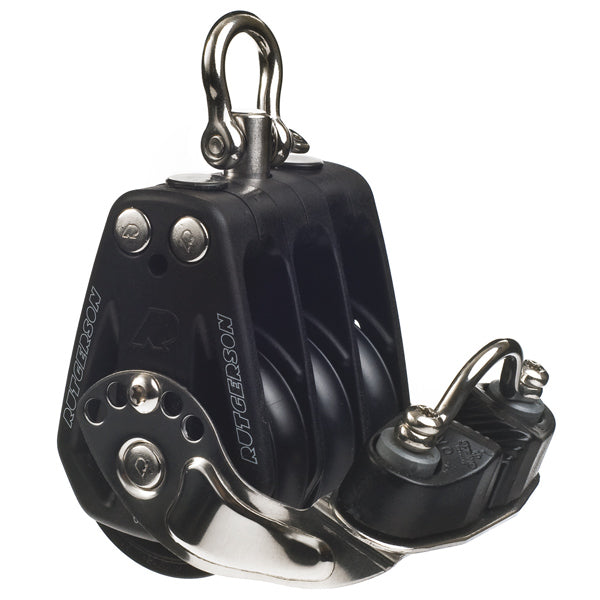

Rutgerson, triple block with becket 50 mm

Description

This triple block with cam cleat is used in purchase systems where you need high mechanical advantage and the ability to quickly lock the line. It is ideal for sailors who want to fine-tune trim under load.

• Brand: Rutgerson
• Working load: 700 kg
• Breaking strength: 1250 kg
• Sheave diameter: 50 mm
• Rope Ø: 6-10 mm
• Product weight: 300 g
• Product dimensions: 80 mm
• Package dimensions: Dimensions: 9 cm × 8 cm × 10 cm | Gross weight: 0.37 kg

This triple block with cam cleat is used in purchase systems where you need high mechanical advantage and the ability to quickly lock the line. It is suitable for sailors who fine-tune trim under load and want a compact block solution that combines both purchase and locking. The combination of three sheaves and a cam cleat gives you good control and efficient handling of trim lines. The block works with three composite sheaves running on a spherical bearing for smooth rotation and low friction. The construction with composite cheeks and sheaves ensures stable operation and low weight. The cam cleat acts as a quick-lock mechanism that grips the line securely when needed. The system is designed to run smoothly under varying loads and provides predictable control during maneuvers. The triple block is used in mainsheet purchases, fine trim, cunningham systems, and other control functions where three sheaves provide the necessary mechanical advantage. It can be combined with other block types in larger systems and works with common rope diameters on board. Units with a swivel head provide extra flexibility during active sailing and fit well on both racing and cruising rigs. The block is useful when you want to combine purchase and locking function in one unit without extra fittings. It is ideal for boats with limited space around trim stations and where quick adjustments are part of sailing. Its low weight and robust construction make it suitable for both cruising and racing, and the cam cleat provides quick control in demanding situations.

Shackle pin Ø: 5 mm

INSTRUCTIONS Preparation: Choose a mounting point with free movement and a suitable load direction.

Installation: 1 Secure the triple block with a shackle or fitting. 2 Lead the line through the sheaves in the planned purchase sequence. 3 Test the cam cleat grip and adjust the line so the system runs freely.

After use: Rinse the block and cam cleat in fresh water. Check that the sheaves rotate freely and remove salt and dirt.
