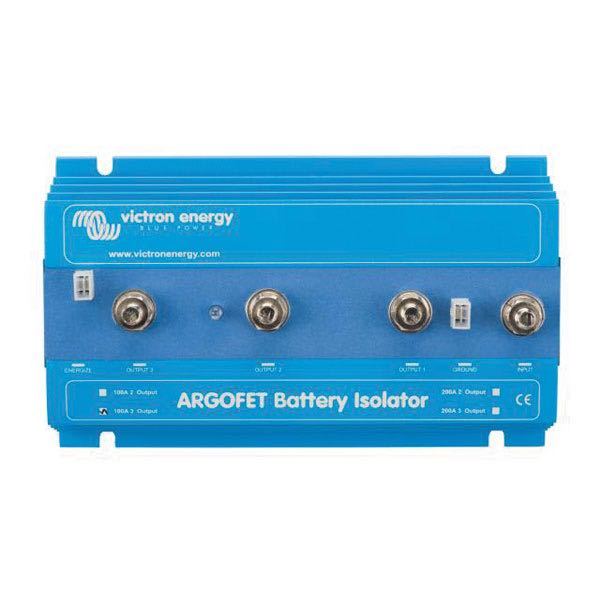

Victron, Argofet battery isolator 100Amp 12/24V

Description

Victron ArgoFET Battery Isolator is an advanced power distribution solution that uses modern FET technology. It ensures efficient power distribution from one alternator to multiple battery banks without voltage drop, which is crucial for battery life and performance.

• Brand: Victron
• Weight: 1.05 kg
• Amp: 100 A
• Outputs: 2
• Volt: 12/24 V
• Package dimensions: Dimensions: 15.4 cm × 27.4 cm × 7 cm | Gross weight: 1.05 kg

Victron ArgoFET Battery Isolator is an advanced power distribution solution that uses modern FET technology instead of traditional diodes. This eliminates voltage drop, which normally occurs with diode isolators, and ensures that the batteries are charged at the correct voltage – which is crucial for battery life and performance. The ArgoFET isolator makes it possible to connect one alternator to multiple battery banks without the batteries discharging each other. It is compatible with both 12V and 24V systems and has a maximum current capacity of up to 200A (depending on model). The unit is equipped with built-in protection features, including protection against overheating and reverse polarity, ensuring reliable operation in all conditions. With a compact and robust design, the ArgoFET is ideal for installations in marine, camper van, and off-grid systems where efficient energy management is critical. It requires no additional cooling and has low energy loss, making it an economical and technically optimal solution.

Technical key points: Technology: FET-based isolator (no voltage drop). System voltage: 12V / 24V automatic detection. Current capacity: Up to 200A (model dependent). Function: Distributes power from one alternator to multiple battery banks. Protection: Overheating and reverse polarity. Design: Compact and robust for demanding environments.

Benefits:

• No voltage drop – maximum charging efficiency
• Ensures isolation between battery banks
• Compatible with 12V and 24V systems
• Robust construction for marine and mobile applications
• Easy installation with no need for additional cooling
