Webasto, Air Top 55 EVO boat heater 5,5kW 24V

Description

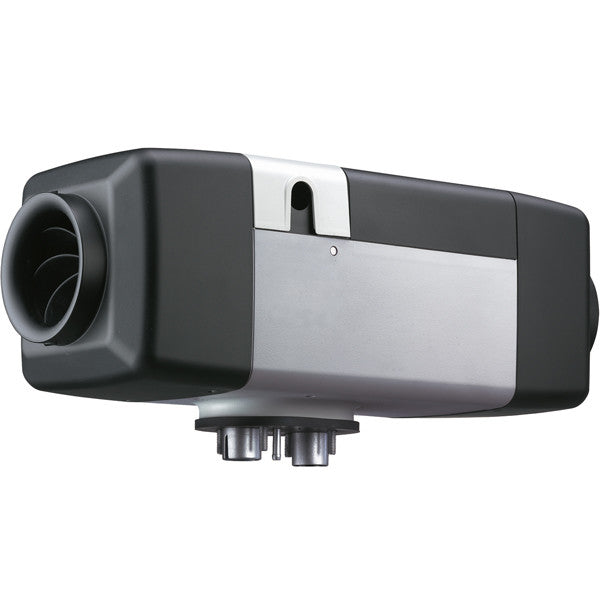

Webasto Air Top 55 EVO is a powerful air heater designed for sailboats up to approx. 45 feet and motorboats up to approx. 40 feet. It delivers an output of 5.5 kW and ensures a comfortable and quiet climate in your boat.

• Brand: Webasto
• Volt: 24 V
• Product weight: 5.9 kg
• Watt: 5500 W
• Product dimensions: 162 mm × 148 mm × 423 mm
• Made in: Germany
• Package dimensions: Dimensions: 30.5 cm × 38 cm × 56 cm | Gross weight: 14.56 kg

Extremely powerful, compact and whisper-quiet, the Air Top Evo 55 ensures a comfortable climate. For larger boats where plenty of heat is required and high demands are placed on performance. Very quiet in operation - also a major benefit for sleeping at night.

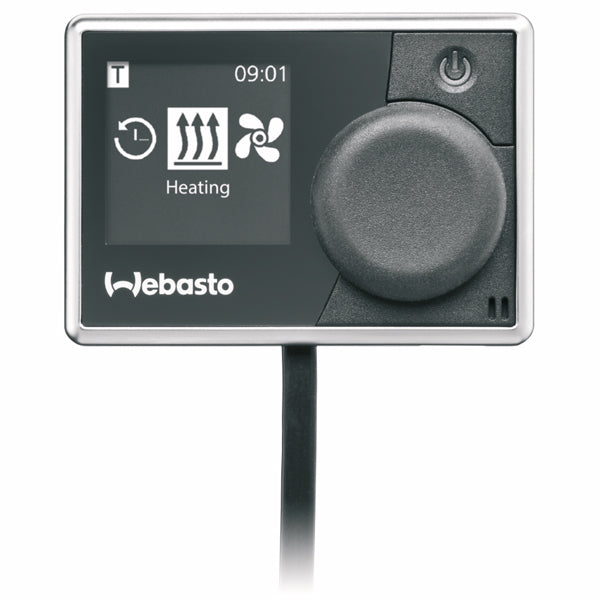

It comes with the new MultiControl timer/thermostat, which offers an additional 3 different operating modes depending on individual heating requirements. Air Top Evo 55 Evo comes incl. mounting parts* for heater and control unit.

• Heat output 1.5 5.0 (5.5*) kW
• Fuel 5,100 -17,000 (18,800*) BTU/h
• Rated power consumption 15 - 95 (130) W
• Air outlet Ø 90 mm
• Exhaust Ø 24 mm
• Boost power level for a maximum duration of 30 min.

Incl. mounting parts for heater and control unit:

• Control panel
• External temp. sensor
• Wiring harness
• Exhaust with silencer
• Exhaust hull fitting
• Fuel hose
• Intake hose with silencer
• Tank/suction fitting
• Fuel filter
• Bracket and hose clamps

NOTE: Boat installation kit for air distribution must be ordered separately.

HEATER INSTALLATION:

• Diesel heaters make a little "rumbling" noise, so they should be placed in the stern/locker/engine room so the sound is not heard in the cabin (apart from a little airflow noise).
• The exhaust gas is led into a "gooseneck" up under the deck and then out through the side/stern.

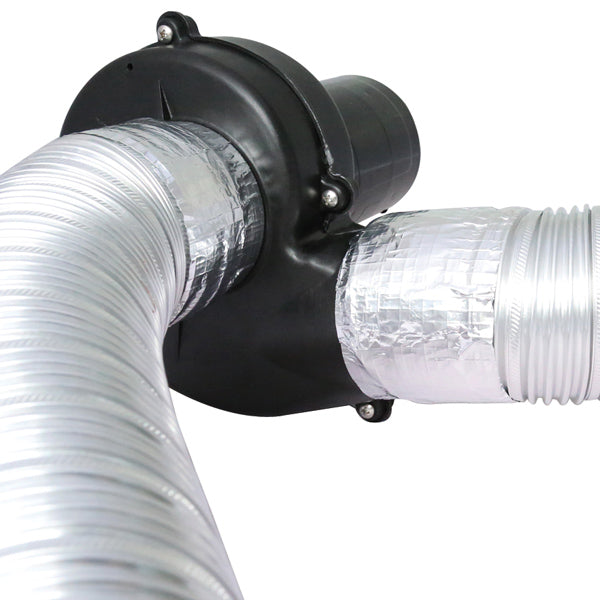

• Fresh, oxygen-rich air is heated and led into the cabin(s) through air ducts.
• Air recirculation = repeated heating of warm air is not recommended.
• Fresh air is easier to "heat" than recirculated air.
• The space where the heater is installed must be well ventilated with sufficient access to "cold" fresh air.
• The heater's combustion air must either be routed to an open vent or drawn from outside (called balanced exhaust).
• Experience shows that the heater itself accounts for only about 50%. The marine accessories and the installation itself make up at least 50% of the finished result.
